BarArc

A bar arc is a bar in a circular shape. It is found under the Analog map in the subgraph
palette.

Fig BarArc

In addition to the linear bar properties, also the bar width, the start angel and the
extension angle can be specified.

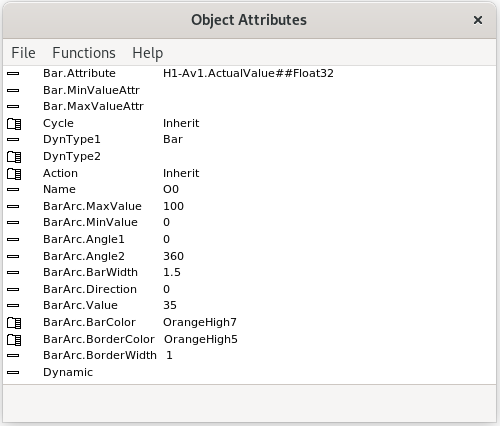

Fig BarArc object attributes
