Displays a list of nodes that the current node communicates with via Remote.
Remote is a function to send data between nodes. Nodes communicating with each other are
configured by RemNode objects, and a transaction sent between two nodes by the Remote
function are configured by RemTrans objects. A number of different protocols for the
data exchange are supported, Modbus, MQ, Serial, TCP, UDP, 3964R and ALCM.

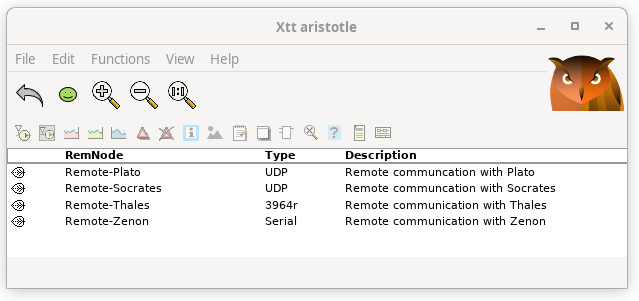

Fig List of RemNodes
Description of the columns
RemNode
Name of the RemNode object, only the two last name segments are displayed.
Type
Type of communication, Modbus, MQ, Serial, TCP, UDP, 3964R or ALCM.
Description
Optional description.
By selecting a RemNode and pressing the Arrow Right key, the RemTrans objects for the
node are viewed (you can also click on the map).
By Shift/Arrow Right the RemNode object is opened.
