Base component for a control damper with analog order output, position
 feedback and/or two switches (switch open and/or switch closed).

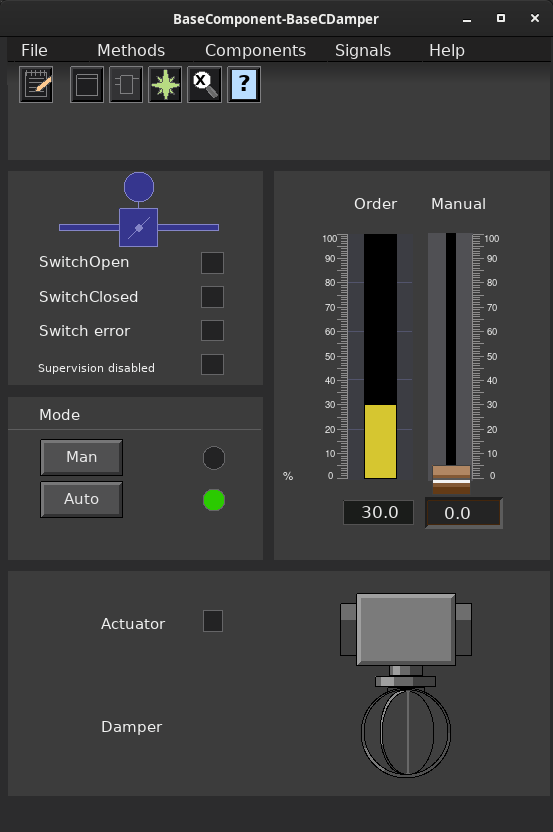

 From the object graph, auto or manual mode can be selected, and in manual mode
 the order output can be set.

 All the signals and code for this object is found in the actuator object
 BaseActuatorA.

 Local mode control is not handled within the object, but local mode
 can be displayed in the object graph and symbol, and with a warning alarm.

 The graphical symbol for this object is BaseComponent/CDamper.

 Default dynamics:
 - the damper symbol is filled with the original color when the damper
   is not closed.
 - colored white when the damper is closed.
 - colored flashing red when an error occurs.
 - colored yellow when a warning occurs.
 - indicating the current mode:
   M:  Manual mode.
   L: Local mode, mode is set to auto when local is left.
   LM: Local mode, mode is set to manual when local is left.
   No indication: auto mode.

 Default action:
 - the methods menu is opened with MB3.

 The scale of the Order, Position and Manual bars, are determined by
 the Actuator.Order.PresMaxLimit and Actuator.Order.PresMinLimit attributes.

 Mode and supervision is handled by the actuator object. See class
 BaseActuatorA for more information.

Configuration

 There are eight configuration alternatives, that specifies whether the actuator
 has limit switches and/or positional feedback.

 - TwoSwitches            Switch open and switch closed. No positional feedback.
 - SwitchOpen             Switch open and no positional feedback.
 - SwitchClosed           Switch closed and no positional feedback.
 - NoSwitches             No switches and no positional feedback.
 - PositionTwoSwitches    Positional feedback, switch open and switch closed.
 - PositionSwitchOpen     Positional feedback and switch open.
 - PositionSwitchClosed   Positional feedback and switch closed.
 - PositionNoSwitches     Positional feedback and no switches.

 Signals that should be connected to channel objects:

 - Actuator.Order        Ao
 - Actuator.Position     Ai (optional)
 - Actuator.SwitchOpen   Di (optional)
 - Actuator.SwitchClosed Di (optional)

 For plc coding the function object BaseCDamperFo is used.

 Create a function object in the plc editor and connect it to the current
 object with the connect function.

• BaseCDamperFo
• BaseActuatorA

 Super class.

 Enumeration for object graph configuration.
 Handled by the ConfigureComponent method.

 Actuator object. Handles the signals and the mode of the damper.

 Damper object, representing the mechanical damper.

 The plc function object connected to this object.
 This attribute is set when the function object is connected from
 the plc editor by the connect function.

 The simulate plc function object connected to this object.
 This attribute is set when the simulate function object is connected from
 the plc editor by the connect function.
