Class BaseComponent:BaseFanAggr

Class BaseFanAggr
Version	1.0
Modified	13-OCT-2005 14:23:11.81

Class BaseFanAggr

Version

1.0

Modified

13-OCT-2005 14:23:11.81

 Fan with circuitbreaker, contactor and/or safetyswitch.

Graphical Symbol

 The graphical symbol for this object is BaseComponent/FanAggr.

 Default dynamics:
 - the triangle is rotated 90 degrees when the fan is on.
 - the fan symbol is filled with the original color when the fan is
   on.
 - colored gray when the fan is off.
 - colored red when an error occurs.
 - colored yellow when a warning occurs.
 - indicating the current mode:
   M:  Manual mode.
   L: Local mode, mode is set to auto when local is left.
   LM: Local mode, mode is set to manual when local is left.
   No indication: auto mode.

 Default action:
 - the methods menu is opened with MB3.

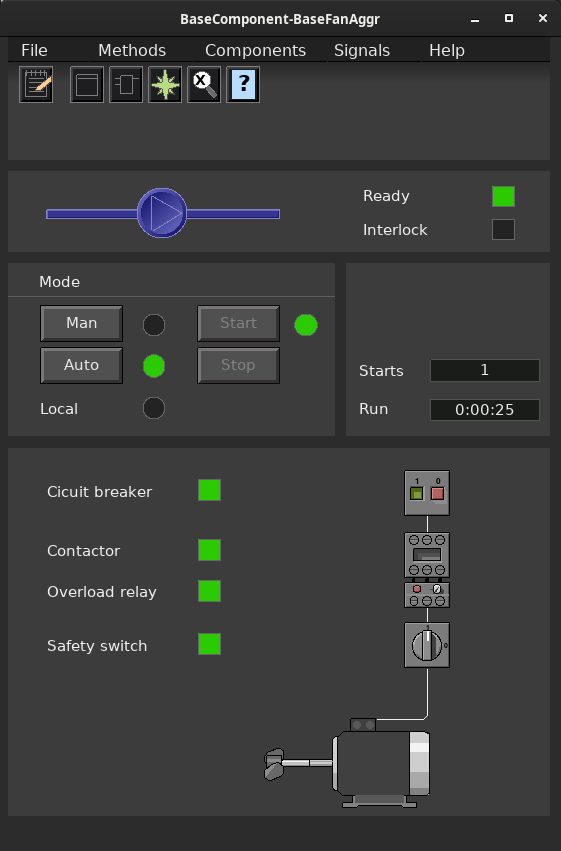

Object Graph

Plc coding

 For plc coding the function object BaseMotorAggrFo is used.

 Create a function object in the plc editor and connect it to the current
 object with the connect function.

Simulate

 For simulation of the fan, use the plc object BaseMotorAggrSim.

See also

RtBody attributes pwr_sClass_BaseFanAggr
BaseMotorAggr	Super		Super class.
BaseFan	Fan

RtBody attributes pwr_sClass_BaseFanAggr

Super class.

Template Object
Super.Contactor.Order.Description	Energize contactor
Super.Contactor.DisableOffControl	1
Super.Contactor.Feedback.Description	Contactor is energized
Super.Contactor.FbTimeLimit	1.000000e+00
Super.Contactor.Alarm.DetectOn	1
Super.Contactor.Alarm.DetectText	Contactor feedback lost
Super.Contactor.Alarm.EventType	64
Super.Contactor.Alarm.EventPriority	67
Super.Contactor.Alarm.EventFlags	7
Super.Contactor.Alarm.MoreText
Super.Contactor.Alarm.Attribute	BaseComponent:Class-BaseFanAggr-Template.Super.Contactor
Super.Contactor.Alarm.CtrlPosition	1
Super.Contactor.Alarm.LockAttribute	1
Super.CircuitBreaker.NotTripped.Description	CircuitBreaker is tripped
Super.CircuitBreaker.Alarm.DetectOn	1
Super.CircuitBreaker.Alarm.DetectText	Circuit breaker tripped
Super.CircuitBreaker.Alarm.EventType	64
Super.CircuitBreaker.Alarm.EventPriority	67
Super.CircuitBreaker.Alarm.EventFlags	7
Super.CircuitBreaker.Alarm.MoreText
Super.CircuitBreaker.Alarm.Attribute	BaseComponent:Class-BaseFanAggr-Template.Super.CircuitBreaker
Super.CircuitBreaker.Alarm.CtrlPosition	1
Super.CircuitBreaker.Alarm.LockAttribute	1
Super.SafetySwitch.Alarm.DetectOn	1
Super.SafetySwitch.Alarm.DetectText	Safety switch is not on
Super.SafetySwitch.Alarm.EventType	64
Super.SafetySwitch.Alarm.EventPriority	67
Super.SafetySwitch.Alarm.EventFlags	7
Super.SafetySwitch.Alarm.MoreText
Super.SafetySwitch.Alarm.Attribute	BaseComponent:Class-BaseFanAggr-Template.Super.SafetySwitch
Super.SafetySwitch.Alarm.CtrlPosition	1
Super.SafetySwitch.Alarm.LockAttribute	1
Super.OverloadRelay.Alarm.DetectOn	1
Super.OverloadRelay.Alarm.DetectText	Overload relay tripped
Super.OverloadRelay.Alarm.EventType	64
Super.OverloadRelay.Alarm.EventPriority	67
Super.OverloadRelay.Alarm.EventFlags	7
Super.OverloadRelay.Alarm.MoreText
Super.OverloadRelay.Alarm.Attribute	BaseComponent:Class-BaseFanAggr-Template.Super.OverloadRelay
Super.OverloadRelay.Alarm.CtrlPosition	1
Super.OverloadRelay.Alarm.LockAttribute	1
Super.Mode.AlarmNotReadyM.DetectOn	1
Super.Mode.AlarmNotReadyM.DetectText	Check interlocks. Manual start is not allowed, not ready
Super.Mode.AlarmNotReadyM.EventType	64
Super.Mode.AlarmNotReadyM.EventPriority	66
Super.Mode.AlarmNotReadyM.EventFlags	7
Super.Mode.AlarmNotReadyM.MoreText
Super.Mode.AlarmNotReadyM.Attribute	BaseComponent:Class-BaseFanAggr-Template
Super.Mode.AlarmNotReadyM.CtrlPosition	1
Super.Mode.AlarmNotReadyM.LockAttribute	1
Super.Mode.AlarmNotReadyA.DetectOn	1
Super.Mode.AlarmNotReadyA.DetectText	Check interlocks. Automode is not allowed, not ready
Super.Mode.AlarmNotReadyA.EventType	64
Super.Mode.AlarmNotReadyA.EventPriority	66
Super.Mode.AlarmNotReadyA.EventFlags	7
Super.Mode.AlarmNotReadyA.MoreText
Super.Mode.AlarmNotReadyA.Attribute	BaseComponent:Class-BaseFanAggr-Template
Super.Mode.AlarmNotReadyA.CtrlPosition	1
Super.Mode.AlarmNotReadyA.LockAttribute	1
Super.Mode.Alarm1LocalMod.DetectOn	1
Super.Mode.Alarm1LocalMod.DetectText	Local mode is activated, remote control is not allowed
Super.Mode.Alarm1LocalMod.EventType	64
Super.Mode.Alarm1LocalMod.EventPriority	66
Super.Mode.Alarm1LocalMod.EventFlags	7
Super.Mode.Alarm1LocalMod.MoreText
Super.Mode.Alarm1LocalMod.Attribute	BaseComponent:Class-BaseFanAggr-Template
Super.Mode.Alarm1LocalMod.CtrlPosition	1
Super.Mode.Alarm1LocalMod.LockAttribute	1
Super.Mode.Alarm2LocalMod.DetectOn	1
Super.Mode.Alarm2LocalMod.DetectText	Local mode is activated
Super.Mode.Alarm2LocalMod.EventType	64
Super.Mode.Alarm2LocalMod.EventPriority	66
Super.Mode.Alarm2LocalMod.EventFlags	7
Super.Mode.Alarm2LocalMod.MoreText
Super.Mode.Alarm2LocalMod.Attribute	BaseComponent:Class-BaseFanAggr-Template
Super.Mode.Alarm2LocalMod.CtrlPosition	1
Super.Mode.Alarm2LocalMod.LockAttribute	1
Super.Mode.AlarmNotManOrd.DetectOn	1
Super.Mode.AlarmNotManOrd.DetectText	Automode active. Manual start/stop order is not allowed
Super.Mode.AlarmNotManOrd.EventType	64
Super.Mode.AlarmNotManOrd.EventPriority	66
Super.Mode.AlarmNotManOrd.EventFlags	7
Super.Mode.AlarmNotManOrd.MoreText
Super.Mode.AlarmNotManOrd.Attribute	BaseComponent:Class-BaseFanAggr-Template
Super.Mode.AlarmNotManOrd.CtrlPosition	1
Super.Mode.AlarmNotManOrd.LockAttribute	1
Super.Motor.GraphConfiguration	2
Super.Motor.DisableTempSwitch	1
Super.Motor.TempSwitch.Super.DisableSwitch	1
Super.Motor.TempSwitch.Super.Alarm.DetectOn	1
Super.Motor.TempSwitch.Super.Alarm.DetectText	High motor temperature
Super.Motor.TempSwitch.Super.Alarm.EventType	64
Super.Motor.TempSwitch.Super.Alarm.EventPriority	67
Super.Motor.TempSwitch.Super.Alarm.EventFlags	7
Super.Motor.TempSwitch.Super.Alarm.MoreText
Super.Motor.TempSwitch.Super.Alarm.Attribute	BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSwitch
Super.Motor.TempSwitch.Super.Alarm.CtrlPosition	1
Super.Motor.TempSwitch.Super.Alarm.LockAttribute	1
Super.Motor.DisableTempSensor	1
Super.Motor.TempSensor.Super.DisableValue	1
Super.Motor.TempSensor.Super.Value.Unit	C
Super.Motor.TempSensor.Super.Value.PresMaxLimit	1.500000e+02
Super.Motor.TempSensor.Super.LimitHH.Alarm.MoreText
Super.Motor.TempSensor.Super.LimitHH.Alarm.CtrlPosition	1
Super.Motor.TempSensor.Super.LimitHH.Limit	1.300000e+02
Super.Motor.TempSensor.Super.LimitHH.Hysteres	4.000000e+00
Super.Motor.TempSensor.Super.LimitHH.TimeDelay	1.000000e+00
Super.Motor.TempSensor.Super.LimitHH.Used	1
Super.Motor.TempSensor.Super.LimitH.Alarm.MoreText
Super.Motor.TempSensor.Super.LimitH.Alarm.CtrlPosition	1
Super.Motor.TempSensor.Super.LimitH.Limit	1.150000e+02
Super.Motor.TempSensor.Super.LimitH.Hysteres	4.000000e+00
Super.Motor.TempSensor.Super.LimitH.TimeDelay	1.000000e+00
Super.Motor.TempSensor.Super.LimitH.Used	1
Super.Motor.TempSensor.Super.LimitL.Alarm.MoreText
Super.Motor.TempSensor.Super.LimitL.Alarm.CtrlPosition	1
Super.Motor.TempSensor.Super.LimitLL.Alarm.MoreText
Super.Motor.TempSensor.Super.LimitLL.Alarm.CtrlPosition	1
Super.Motor.TempSensor.Super.Trend.Multiple	1
Super.Motor.TempSensor.Super.Trend.DataName	BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSensor.Super.Value.Act
Super.Motor.TempSensor.Super.Trend.StorageTime	239
Super.Motor.TempSensor.Super.Trend.BufferStatus[0]	1
Super.Motor.TempSensor.Super.Trend.BufferStatus[1]	1
Super.Motor.TempSensor.Super.Trend.NoOfBuffers	2
Super.Motor.TempSensor.Super.Trend.NoOfBufElement	239
Super.Motor.TempSensor.Super.DefTrend	BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSensor.Super.Trend

Template Object

Super.Contactor.Order.Description

Energize contactor

Super.Contactor.DisableOffControl

Super.Contactor.Feedback.Description

Contactor is energized

Super.Contactor.FbTimeLimit

1.000000e+00

Super.Contactor.Alarm.DetectOn

Super.Contactor.Alarm.DetectText

Contactor feedback lost

Super.Contactor.Alarm.EventType

Super.Contactor.Alarm.EventPriority

Super.Contactor.Alarm.EventFlags

Super.Contactor.Alarm.MoreText

Super.Contactor.Alarm.Attribute

BaseComponent:Class-BaseFanAggr-Template.Super.Contactor

Super.Contactor.Alarm.CtrlPosition

Super.Contactor.Alarm.LockAttribute

Super.CircuitBreaker.NotTripped.Description

CircuitBreaker is tripped

Super.CircuitBreaker.Alarm.DetectOn

Super.CircuitBreaker.Alarm.DetectText

Circuit breaker tripped

Super.CircuitBreaker.Alarm.EventType

Super.CircuitBreaker.Alarm.EventPriority

Super.CircuitBreaker.Alarm.EventFlags

Super.CircuitBreaker.Alarm.MoreText

Super.CircuitBreaker.Alarm.Attribute

BaseComponent:Class-BaseFanAggr-Template.Super.CircuitBreaker

Super.CircuitBreaker.Alarm.CtrlPosition

Super.CircuitBreaker.Alarm.LockAttribute

Super.SafetySwitch.Alarm.DetectOn

Super.SafetySwitch.Alarm.DetectText

Safety switch is not on

Super.SafetySwitch.Alarm.EventType

Super.SafetySwitch.Alarm.EventPriority

Super.SafetySwitch.Alarm.EventFlags

Super.SafetySwitch.Alarm.MoreText

Super.SafetySwitch.Alarm.Attribute

BaseComponent:Class-BaseFanAggr-Template.Super.SafetySwitch

Super.SafetySwitch.Alarm.CtrlPosition

Super.SafetySwitch.Alarm.LockAttribute

Super.OverloadRelay.Alarm.DetectOn

Super.OverloadRelay.Alarm.DetectText

Overload relay tripped

Super.OverloadRelay.Alarm.EventType

Super.OverloadRelay.Alarm.EventPriority

Super.OverloadRelay.Alarm.EventFlags

Super.OverloadRelay.Alarm.MoreText

Super.OverloadRelay.Alarm.Attribute

BaseComponent:Class-BaseFanAggr-Template.Super.OverloadRelay

Super.OverloadRelay.Alarm.CtrlPosition

Super.OverloadRelay.Alarm.LockAttribute

Super.Mode.AlarmNotReadyM.DetectOn

Super.Mode.AlarmNotReadyM.DetectText

Check interlocks. Manual start is not allowed, not ready

Super.Mode.AlarmNotReadyM.EventType

Super.Mode.AlarmNotReadyM.EventPriority

Super.Mode.AlarmNotReadyM.EventFlags

Super.Mode.AlarmNotReadyM.MoreText

Super.Mode.AlarmNotReadyM.Attribute

BaseComponent:Class-BaseFanAggr-Template

Super.Mode.AlarmNotReadyM.CtrlPosition

Super.Mode.AlarmNotReadyM.LockAttribute

Super.Mode.AlarmNotReadyA.DetectOn

Super.Mode.AlarmNotReadyA.DetectText

Check interlocks. Automode is not allowed, not ready

Super.Mode.AlarmNotReadyA.EventType

Super.Mode.AlarmNotReadyA.EventPriority

Super.Mode.AlarmNotReadyA.EventFlags

Super.Mode.AlarmNotReadyA.MoreText

Super.Mode.AlarmNotReadyA.Attribute

BaseComponent:Class-BaseFanAggr-Template

Super.Mode.AlarmNotReadyA.CtrlPosition

Super.Mode.AlarmNotReadyA.LockAttribute

Super.Mode.Alarm1LocalMod.DetectOn

Super.Mode.Alarm1LocalMod.DetectText

Local mode is activated, remote control is not allowed

Super.Mode.Alarm1LocalMod.EventType

Super.Mode.Alarm1LocalMod.EventPriority

Super.Mode.Alarm1LocalMod.EventFlags

Super.Mode.Alarm1LocalMod.MoreText

Super.Mode.Alarm1LocalMod.Attribute

BaseComponent:Class-BaseFanAggr-Template

Super.Mode.Alarm1LocalMod.CtrlPosition

Super.Mode.Alarm1LocalMod.LockAttribute

Super.Mode.Alarm2LocalMod.DetectOn

Super.Mode.Alarm2LocalMod.DetectText

Local mode is activated

Super.Mode.Alarm2LocalMod.EventType

Super.Mode.Alarm2LocalMod.EventPriority

Super.Mode.Alarm2LocalMod.EventFlags

Super.Mode.Alarm2LocalMod.MoreText

Super.Mode.Alarm2LocalMod.Attribute

BaseComponent:Class-BaseFanAggr-Template

Super.Mode.Alarm2LocalMod.CtrlPosition

Super.Mode.Alarm2LocalMod.LockAttribute

Super.Mode.AlarmNotManOrd.DetectOn

Super.Mode.AlarmNotManOrd.DetectText

Automode active. Manual start/stop order is not allowed

Super.Mode.AlarmNotManOrd.EventType

Super.Mode.AlarmNotManOrd.EventPriority

Super.Mode.AlarmNotManOrd.EventFlags

Super.Mode.AlarmNotManOrd.MoreText

Super.Mode.AlarmNotManOrd.Attribute

BaseComponent:Class-BaseFanAggr-Template

Super.Mode.AlarmNotManOrd.CtrlPosition

Super.Mode.AlarmNotManOrd.LockAttribute

Super.Motor.GraphConfiguration

Super.Motor.DisableTempSwitch

Super.Motor.TempSwitch.Super.DisableSwitch

Super.Motor.TempSwitch.Super.Alarm.DetectOn

Super.Motor.TempSwitch.Super.Alarm.DetectText

High motor temperature

Super.Motor.TempSwitch.Super.Alarm.EventType

Super.Motor.TempSwitch.Super.Alarm.EventPriority

Super.Motor.TempSwitch.Super.Alarm.EventFlags

Super.Motor.TempSwitch.Super.Alarm.MoreText

Super.Motor.TempSwitch.Super.Alarm.Attribute

BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSwitch

Super.Motor.TempSwitch.Super.Alarm.CtrlPosition

Super.Motor.TempSwitch.Super.Alarm.LockAttribute

Super.Motor.DisableTempSensor

Super.Motor.TempSensor.Super.DisableValue

Super.Motor.TempSensor.Super.Value.Unit

Super.Motor.TempSensor.Super.Value.PresMaxLimit

1.500000e+02

Super.Motor.TempSensor.Super.LimitHH.Alarm.MoreText

Super.Motor.TempSensor.Super.LimitHH.Alarm.CtrlPosition

Super.Motor.TempSensor.Super.LimitHH.Limit

1.300000e+02

Super.Motor.TempSensor.Super.LimitHH.Hysteres

4.000000e+00

Super.Motor.TempSensor.Super.LimitHH.TimeDelay

1.000000e+00

Super.Motor.TempSensor.Super.LimitHH.Used

Super.Motor.TempSensor.Super.LimitH.Alarm.MoreText

Super.Motor.TempSensor.Super.LimitH.Alarm.CtrlPosition

Super.Motor.TempSensor.Super.LimitH.Limit

1.150000e+02

Super.Motor.TempSensor.Super.LimitH.Hysteres

4.000000e+00

Super.Motor.TempSensor.Super.LimitH.TimeDelay

1.000000e+00

Super.Motor.TempSensor.Super.LimitH.Used

Super.Motor.TempSensor.Super.LimitL.Alarm.MoreText

Super.Motor.TempSensor.Super.LimitL.Alarm.CtrlPosition

Super.Motor.TempSensor.Super.LimitLL.Alarm.MoreText

Super.Motor.TempSensor.Super.LimitLL.Alarm.CtrlPosition

Super.Motor.TempSensor.Super.Trend.Multiple

Super.Motor.TempSensor.Super.Trend.DataName

BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSensor.Super.Value.Act

Super.Motor.TempSensor.Super.Trend.StorageTime

239

Super.Motor.TempSensor.Super.Trend.BufferStatus[0]

Super.Motor.TempSensor.Super.Trend.BufferStatus[1]

Super.Motor.TempSensor.Super.Trend.NoOfBuffers

Super.Motor.TempSensor.Super.Trend.NoOfBufElement

239

Super.Motor.TempSensor.Super.DefTrend

BaseComponent:Class-BaseFanAggr-Template.Super.Motor.TempSensor.Super.Trend

Super Attribute
Class	Attribute
Type	BaseMotorAggr
Flags	Class\|Superclass
Body	RtBody

Class

Type

Class|Superclass

Body

RtBody

Fan Attribute
Class	Attribute
Type	BaseFan
Flags	CastAttr\|Class
Body	RtBody

Class

Type

CastAttr|Class

Body

RtBody

Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class ClassTree	INDEX NO INDEX

Attributes detail
