Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

Class BaseFcPPO5MotorAggrSim
Version	1.0
Modified	12-MAR-2008 14:50:27.01
Code	PlcTemplate

 Plc simulation object to BaseFcPPO5MotorAggr.

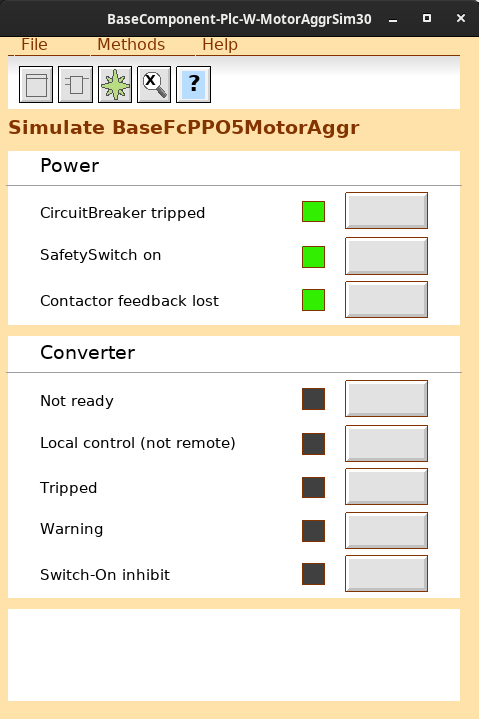

Object Graph


 Connect the function object to an object of class or subclass of
 BaseFcPPO5MotorAggr.

See also

RtBody attributes pwr_sClass_BaseFcPPO5MotorAggrSim
AttrRef	PlcConnect	The main object connected to this function object.
Boolean	OpToggleCircuitBreaker
Boolean	OpToggleSafetySwitch
Boolean	OpResetContactorFeedback
Boolean	IndCircuitBreakerTripped
Boolean	IndSafetySwitchOn
Boolean	IndContactorFeedback

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	7
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	MotorAggrSim
graphname	MotorAggrSim

Template Object

Attributes detail

 The main object connected to this object.
 This attribute is set when the function object is connected from
 the plc editor by the connect function.

OpToggleCircuitBreaker Intern
Class	Intern
Type	Boolean
Flags	State\|Noedit
Body	RtBody

OpToggleSafetySwitch Intern
Class	Intern
Type	Boolean
Flags	State\|Noedit
Body	RtBody

OpResetContactorFeedback Intern
Class	Intern
Type	Boolean
Flags	State\|Noedit
Body	RtBody

IndCircuitBreakerTripped Intern
Class	Intern
Type	Boolean
Flags	Noedit
Body	RtBody

IndContactorFeedback Intern
Class	Intern
Type	Boolean
Flags	Noedit
Body	RtBody
