Class BodyText
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 08-MAR-2026 11:05:32.00 | |

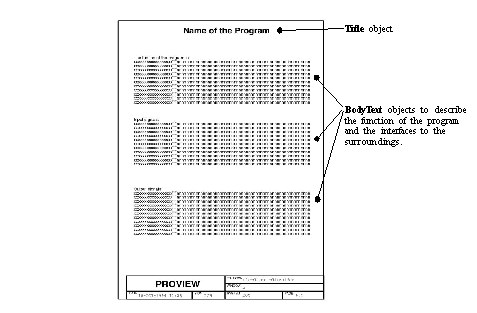

Object to create a multi-row text. Used when a larger description is to be done; e.g. in a Document object.Example
| DevBody attributes | |||
|---|---|---|---|
| TextAttrEnum | TextAttribute | The attribute influence the appearance of the text. The following values are used: |
|
| FrameAttrEnum | FrameAttribute | Specifies if the text is to be surrounded by a some kind of frame. |
|
| Float32 | FrameWidth | If the object has a frame the attributes will determine the size of the frame. 0, 0 means the size of the frame is accommodated to the current text. If the object is used only to frame other objects the attributes have to be increased in suitable way. |
|
| Float32 | FrameHeight | ||
| PlcNode | PlcNode | ||
| Text1024 | Text | Text | Specifies the text to be shown in the object. If the Tab-key is used in the Attribute Editor the corresponding characters in the BodyText object will be moved just one position. |
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 0 |
| parameters[1] | 1 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 0 |
| graphmethod | 3 (text) |
| graphindex | 1 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 0 |
| devbody_annotation | 1 |
| compmethod | 2 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| objname | BodyText |
| graphname | BodyText |
| debugpar | |
| Template Object | |
|---|---|
| TextAttribute | 1 |
| FrameAttribute | 2 |
| TextAttribute Intern | ||
|---|---|---|
| Class | Intern | |
| Type | TextAttrEnum | |
| Flags | ||
| Body | DevBody | |
The attribute influence the appearance of the text. The following values are used:
| FrameAttribute Intern | ||
|---|---|---|
| Class | Intern | |
| Type | FrameAttrEnum | |
| Flags | ||
| Body | DevBody | |
Specifies if the text is to be surrounded by a some kind of frame.
| FrameWidth Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | DevBody | |
If the object has a frame the attributes will determine the size of the frame. 0, 0 means the size of the frame is accommodated to the current text. If the object is used only to frame other objects the attributes have to be increased in suitable way.
| FrameHeight Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | DevBody | |
| PlcNode Buffer | ||
|---|---|---|
| Class | Buffer | |
| Type | PlcNode | |
| Flags | INVISIBLE | |
| Body | DevBody | |
| Text Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Text1024 | |
| Flags | ||
| GraphName | Text | |
| Body | DevBody | |
Specifies the text to be shown in the object. If the Tab-key is used in the Attribute Editor the corresponding characters in the BodyText object will be moved just one position.
