Class MessageHandler
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 08-MAR-2026 11:05:32.00 | |

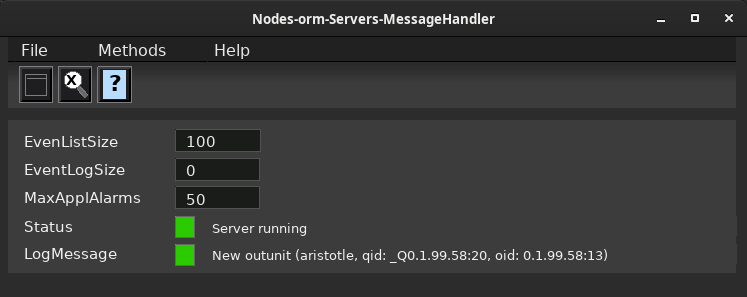

Specifies attributes to a single message handler. Every message handler job needs a MessageHandler object.

Message Handler (Mh) Jobs in Different Nodes with their MessageHandler Objects If any MessageHandler object is not explicitly configured to a node it will likewise be created in the runtime system. In this case the attributes are assigned their default values. If the user does not accept these default values, please create a MessageHandler object below the node's $Node object, name it MessageHandler and assign desired values to the attributes. In connection with configuring of a $Node object the development environment normally configure a MessageHandler object as well.Object graph

| RtBody attributes pwr_sClass_MessageHandler | |||
|---|---|---|---|
| Boolean | OutunitServer | Not yet implemented. | |
| Boolean | BlockFile | If true, current alarm blocking are stored to file and recovered after a restart. |
|
| UInt32 | EventLogSize | Size of event log. Max number of events that can be stored in the event log. |
|
| UInt32 | EventListSize | Specifies the maximum number of events that the node's message handler contemporary will contain in its event list, i.e. the skyline of the events. When NoOfEvents exceeds MaxNoOfEvents the oldest event disappears from the list. |
|
| UInt32 | MaxApplAlarms | Specifies the maximum number of contemporary alarms to any application job. The attribute is used to prevent a single job from occupying whole event list of the message handler. |
|
| UInt32 | MaxSystemAlarms | Specifies the maximum number of contemporary system alarms. The attribute is used to limit alarm allocation when system alarms are not acknowledged. |
|
| Float32 | DetectTimer | Cycle time for detecting alarm conditions for supervision objects which detection is handled by the event monitor, that is supervision objects that is not in a PlcPgm and not under a signal object. |
|
| Float32 | MessageTimer | Cycle time for reading status of supervision object and sending alarm messages. |
|
| UInt32 | AlarmFirstIdx | ||
| UInt32 | AlarmLastIdx | ||
| UInt32 | AlarmCount | The number of active alarms counted from time of boot. | |
| UInt32 | AlarmMaxCount | ||
| UInt32 | BlockFirstIdx | ||
| UInt32 | BlockLastIdx | ||
| UInt32 | BlockCount | ||
| UInt32 | BlockMaxCount | ||
| UInt32 | EventFirstIdx | ||
| UInt32 | EventLastIdx | ||
| UInt32 | EventCount | The number of events counted from time of boot. | |
| UInt32 | EventMaxCount | ||
| UInt32 | FreeCount | ||
| Boolean | ScanCycleSup | ||
| Array of SystemSup | SystemEvents | Alarms and events emitted by the system. An array of supervisory objects that is triggered by various system events or errors. |
|
| Template Object | |
|---|---|
| EventListSize | 100 |
| MaxApplAlarms | 50 |
| MaxSystemAlarms | 50 |
| DetectTimer | 1.0 |
| MessageTimer | 1.0 |
| ScanCycleSup | 1 |
| SystemEvents[0].SystemEvent | 0 |
| SystemEvents[0].Description | Link down event |
| SystemEvents[0].DetectOn | 1 |
| SystemEvents[0].DetectText | Link down to node |
| SystemEvents[0].ReturnText | Link up to node |
| SystemEvents[0].EventType | 256 |
| SystemEvents[0].EventPriority | 67 |
| SystemEvents[0].EventFlags | 7 |
| SystemEvents[1].SystemEvent | 1 |
| SystemEvents[1].Description | Node up event |
| SystemEvents[1].DetectOn | 1 |
| SystemEvents[1].DetectText | Node up |
| SystemEvents[1].ReturnText | |
| SystemEvents[1].EventType | 32 |
| SystemEvents[1].EventPriority | 67 |
| SystemEvents[1].EventFlags | 55 |
| SystemEvents[2].SystemEvent | 2 |
| SystemEvents[2].Description | Node restart event |
| SystemEvents[2].DetectOn | 1 |
| SystemEvents[2].DetectText | Node restart initiated, node |
| SystemEvents[2].ReturnText | Node restart completion, node |
| SystemEvents[2].EventType | 256 |
| SystemEvents[2].EventPriority | 67 |
| SystemEvents[2].EventFlags | 7 |
| SystemEvents[3].SystemEvent | 3 |
| SystemEvents[3].Description | Outunit restart event |
| SystemEvents[3].DetectOn | 1 |
| SystemEvents[3].DetectText | Outunit restarted, node |
| SystemEvents[3].ReturnText | |
| SystemEvents[3].EventType | 32 |
| SystemEvents[3].EventPriority | 67 |
| SystemEvents[3].EventFlags | 55 |
| SystemEvents[4].SystemEvent | 4 |
| SystemEvents[4].Description | Emergency break with reboot event |
| SystemEvents[4].DetectOn | 1 |
| SystemEvents[4].DetectText | Emergency break reboot, node |
| SystemEvents[4].ReturnText | |
| SystemEvents[4].EventType | 256 |
| SystemEvents[4].EventPriority | 67 |
| SystemEvents[4].EventFlags | 7 |
| SystemEvents[5].SystemEvent | 5 |
| SystemEvents[5].Description | Emergency break with fixed output values event |
| SystemEvents[5].DetectOn | 1 |
| SystemEvents[5].DetectText | Emergency break, fixed output values, node |
| SystemEvents[5].ReturnText | |
| SystemEvents[5].EventType | 256 |
| SystemEvents[5].EventPriority | 67 |
| SystemEvents[5].EventFlags | 7 |
| SystemEvents[6].SystemEvent | 6 |
| SystemEvents[6].Description | Emergency break with stop I/O |
| SystemEvents[6].DetectOn | 1 |
| SystemEvents[6].DetectText | Emergency break, I/O stopped, node |
| SystemEvents[6].ReturnText | |
| SystemEvents[6].EventType | 256 |
| SystemEvents[6].EventPriority | 67 |
| SystemEvents[6].EventFlags | 7 |
| SystemEvents[7].SystemEvent | 7 |
| SystemEvents[7].Description | Simulate load event |
| SystemEvents[7].DetectOn | 1 |
| SystemEvents[7].DetectText | Simulate load started, node |
| SystemEvents[7].ReturnText | Simulate load completion, node |
| SystemEvents[7].EventType | 256 |
| SystemEvents[7].EventPriority | 67 |
| SystemEvents[7].EventFlags | 7 |
| SystemEvents[8].SystemEvent | 8 |
| SystemEvents[8].Description | System status error event |
| SystemEvents[8].DetectOn | 1 |
| SystemEvents[8].DetectText | System status error, node |
| SystemEvents[8].ReturnText | |
| SystemEvents[8].EventType | 256 |
| SystemEvents[8].EventPriority | 67 |
| SystemEvents[8].EventFlags | 7 |
| SystemEvents[9].SystemEvent | 9 |
| SystemEvents[9].Description | System status warning event |
| SystemEvents[9].DetectOn | 1 |
| SystemEvents[9].DetectText | System status warning, node |
| SystemEvents[9].ReturnText | |
| SystemEvents[9].EventType | 256 |
| SystemEvents[9].EventPriority | 66 |
| SystemEvents[9].EventFlags | 7 |
| SystemEvents[10].SystemEvent | 10 |
| SystemEvents[10].Description | IO Soft error limit reached event |
| SystemEvents[10].DetectOn | 1 |
| SystemEvents[10].DetectText | IO Soft error limit reached, node |
| SystemEvents[10].ReturnText | |
| SystemEvents[10].EventType | 256 |
| SystemEvents[10].EventPriority | 66 |
| SystemEvents[10].EventFlags | 7 |
| SystemEvents[11].SystemEvent | 11 |
| SystemEvents[11].Description | IO Hard error limit reached event |
| SystemEvents[11].DetectOn | 1 |
| SystemEvents[11].DetectText | IO Hard error limit reached, node |
| SystemEvents[11].ReturnText | |
| SystemEvents[11].EventType | 256 |
| SystemEvents[11].EventPriority | 67 |
| SystemEvents[11].EventFlags | 7 |
| SystemEvents[12].SystemEvent | 12 |
| SystemEvents[12].Description | Application alarm quota exceeded event, node |
| SystemEvents[12].DetectOn | 1 |
| SystemEvents[12].DetectText | Application alarm quota exceeded, node |
| SystemEvents[12].ReturnText | |
| SystemEvents[12].EventType | 32 |
| SystemEvents[12].EventPriority | 67 |
| SystemEvents[12].EventFlags | 55 |
| SystemEvents[13].SystemEvent | 13 |
| SystemEvents[13].Description | System alarm quota exceeded event |
| SystemEvents[13].DetectOn | 1 |
| SystemEvents[13].DetectText | System alarm quota exceeded, node |
| SystemEvents[13].ReturnText | |
| SystemEvents[13].EventType | 32 |
| SystemEvents[13].EventPriority | 67 |
| SystemEvents[13].EventFlags | 55 |
| OutunitServer Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
Not yet implemented.
| BlockFile Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
If true, current alarm blocking are stored to file and recovered after a restart.
| EventLogSize Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | ||
| Body | RtBody | |
Size of event log. Max number of events that can be stored in the event log.
| EventListSize Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | ||
| Body | RtBody | |
Specifies the maximum number of events that the node's message handler contemporary will contain in its event list, i.e. the skyline of the events. When NoOfEvents exceeds MaxNoOfEvents the oldest event disappears from the list.
| MaxApplAlarms Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | ||
| Body | RtBody | |
Specifies the maximum number of contemporary alarms to any application job. The attribute is used to prevent a single job from occupying whole event list of the message handler.
| MaxSystemAlarms Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | ||
| Body | RtBody | |
Specifies the maximum number of contemporary system alarms. The attribute is used to limit alarm allocation when system alarms are not acknowledged.
| DetectTimer Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Cycle time for detecting alarm conditions for supervision objects which detection is handled by the event monitor, that is supervision objects that is not in a PlcPgm and not under a signal object.
| MessageTimer Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Cycle time for reading status of supervision object and sending alarm messages.
| AlarmFirstIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| AlarmLastIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| AlarmCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
The number of active alarms counted from time of boot.
| AlarmMaxCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| BlockFirstIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| BlockLastIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| BlockCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| BlockMaxCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| EventFirstIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| EventLastIdx Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| EventCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
The number of events counted from time of boot.
| EventMaxCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| FreeCount Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | UInt32 | |
| Flags | STATE | INVISIBLE | |
| Body | RtBody | |
| ScanCycleSup Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
| SystemEvents Attribute | ||
|---|---|---|
| Class | Attribute | |
| Type | Array of SystemSup | |
| Flags | ARRAY | CLASS | |
| Elements | 14 | |
| Body | RtBody | |
Alarms and events emitted by the system. An array of supervisory objects that is triggered by various system events or errors.
