Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

 Plc simulation object to BaseFcPPO3.

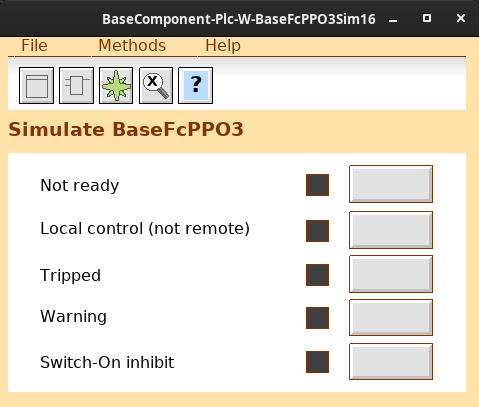

Object Graph


 Connect the function object to an object of class or subclass of
 BaseFcPPO3.

See also

RtBody attributes pwr_sClass_BaseFcPPO3Sim
AttrRef	PlcConnect	The main object connected to this function object.
Boolean	OpSimTripped
Boolean	OpSimNotReady
Boolean	OpSimWarning
Boolean	OpSimOnInhibit
Boolean	OpSimNotRemote

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	14
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	BaseFcPPO3Sim
graphname	BaseFcPPO3Sim

Template Object

Attributes detail

 The main object connected to this object.
 This attribute is set when the function object is connected from
 the plc editor by the connect function.
