Adding an operator station

Hi Mika,

The value display doesn't work on Disabled objects. The color display should work though so if black, it's not disabled, and if red it's disabled.

/Claes

Hello,

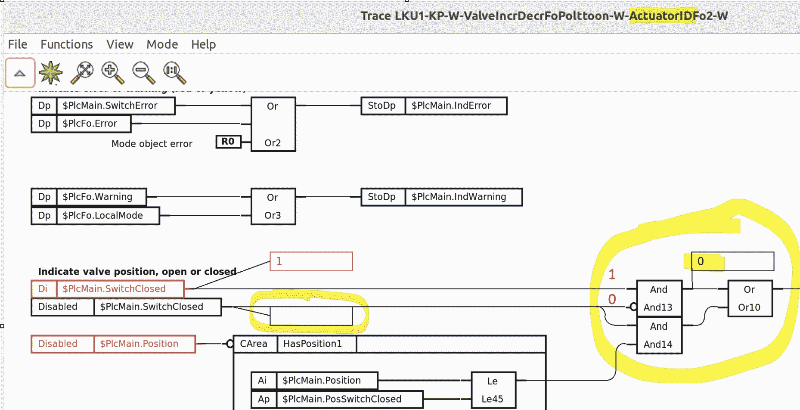

I just recently discovered trace tool (which is great by the way) so probably I read it wrong. But still in my mind And13 object should return true:


-Mika

Hi Mika,

Also in my mind and13 should be true. Either the plc thread is not executing or there is a version mismatch between the plc and the database.

You could try to set And13.Status from xtt and the value is not reset it’s an indication that the value is not controlled by the plc and the thread is not running.

Look at the loop counter (Count) in the PlcThread object to see if the plc is executing. This should increase every scan.

If you suspect version mismatch build the node with force.

/Claes

Hello Claes,
I finally got it sorted. Sounds odd but solution was to open each PlcPrg and make a change. Moving an block or adding an text was enough. Then save and build.

Now base components behave normally and will continue with adding operator station.

-Mika
