The Operator Window

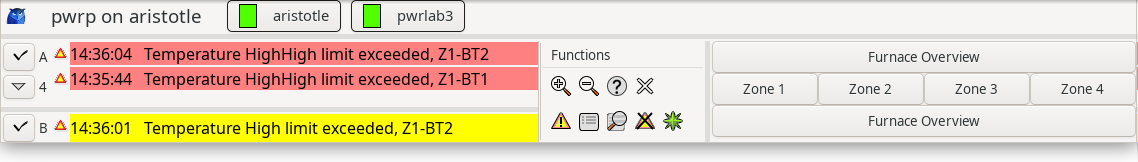

Fig The operator window

The operator window is placed at the upper edge of the screen, and lacks title row and
pushbuttons to iconify and delete the window. It is divided in tree parts, to the left
current alarms and messages are viewed, in the middle there are pushbuttons for some base
functions, and to the left there are pushbuttons configured for this operator place.

Status bar

The top row is a status bar. It shows who is logged in on which node. For tha current
node, and for all nodes that there are node supervision configured, an indicator for system
status is viewed. Green states that everything is all right, yellow indicates warning, red
error and flashing red fatal error. If you click on a node, the status graph for the node
is opened.

Alarms and messages

In the left part of the operator window alarm and messages are displayed.

The alarms are divided into four priority levels A, B, C and D, where A has the highest
priority and D the lowest. A alarms are marked red, B alarms yellow, C alarms blue and D
alarms violet. Furthermore there is the category Info messages that are marked with green.

In the upper field, the latest unacknowledged A alarm are displayed. Depending on the height
of the operator window, 2 to 5 alarms are viewed. There is also a button marked with a tick
to acknowledge A alarms.

In the lower field the latest unacknowledged B, C, D alarms, and info messages are viewed.
These alarms are displayed in priority order rather than in chronological order, i.e. if
there are unacknowledged B alarms, the latest of these will be displayed. Only if there are
no acknowledged B alarms, possible C alarms are viewed etc. There is also an acknowledge
button to acknowledge the B, C, D alarms and the info messaged.

An alarm is prevailing if the alarm condition still is fulfilled. This is marked with a
warning triangle to the left of the alarm text.

Menu and pushbuttons to open base functions

In the middle part of the operator window there are a menu and some buttons to open
base functions.

Menu
Below is a description of the menu items in the Functions menu.

Functions/Alarm/AlarmList		Open the alarm list with prevailing and unacknowledged alarms.
Functions/Alarm/EventList		Open the event list, a list of the latest alarms and events.
Functions/Alarm/EventLog		Open the event log, where you can display stored events.
Functions/Alarm/BlockList		Open the list of blocked alarms.
Functions/Curves/Trends		Display a list of all trendcurves.
Functions/Curves/Fast		Display a list of all fastcurves.
Functions/Curves/Process History		Display a list of process history.
Functions/Process Graphics		Display a list of all process graphs, defined by
		XttGraph objects.
Functions/Navigator		Open the navigator.
Functions/View/Zoom in		Increase the text size in the alarmtext.
Functions/View/Zoom out		Decrease the text size in the alarmtext.
Functions/User/Switch User		Open the login window to login as another user.
Functions/User/Show User		Show the current user.
Functions/User/Return		Return to the original user.
Functions/Help/Project		Show helptexts for the project.
Functions/Help/Overview		Show an overview of helptexts.
Functions/Help/Operator Window		Display help on the operator window.
Functions/Help/About ProviewR		Display ProviewR into, for example version of install package.
Functions/Close		Close down the operator place.

Pushbuttons
Below the menu there is a tool panel with a number of pushbuttons that works as shortcuts to
menu items:

- zoom in and out.
- show helptexts for the project.
- close.
- show alarmlist.
- show eventlist.
- show eventlog.
- show list of blocked alarms.
- open the navigator.

Function buttons

To the right there are a number of pushbuttons that are used to open process graphs or
execute various orders or commands. How these buttons are used depends of the configuration
of the operator place.
